FAQ Component Locations 1,4 TSI engine DJKA

Fitting Locations

1,4 TSI petrol engine DJKA, from the front

1 - Activated charcoal filter solenoid valve 1 -N80-
2 - Fuel pressure sender -G247-
3 - Injector, cylinder 1 -N30-
4 - Injector, cylinder 2 -N31-
5 - Injector, cylinder 3 -N32-
6 - Injector, cylinder 4 -N33-
7 - Intake manifold sender -GX9-
8 - Charge pressure sender -GX26-
9 - Throttle valve module -GX3-
10 - Engine speed sender -G28-
11 - Charge air cooling pump -V188-
12 - Knock sensor 1 -G61-
13 - Air conditioner compressor regulating valve -N280-
14 - Alternator with voltage regulator -CX1-
15 - Oil pressure switch for reduced oil pressure -F378-

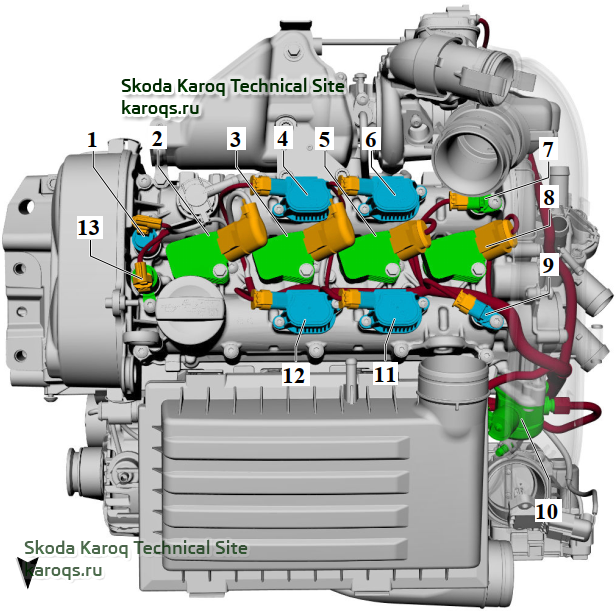

1,4 TSI petrol engine DJKA, from the top

1 - Exhaust camshaft control valve 1 -N318-
2 - Ignition coil 1 with output stage -N70-
3 - Ignition coil 2 with output stage -N127-
4 - Not installed
5 - Ignition coil 3 with output stage -N291-
6 - Not installed
7 - Hall sender 3 -G300-
8 - Ignition coil 4 with output stage -N292-
9 - Hall sender -G40-
10 - Fuel metering valve -N290-
11 - Not installed
12 - Not installed
13 - Camshaft control valve 1 -N205-

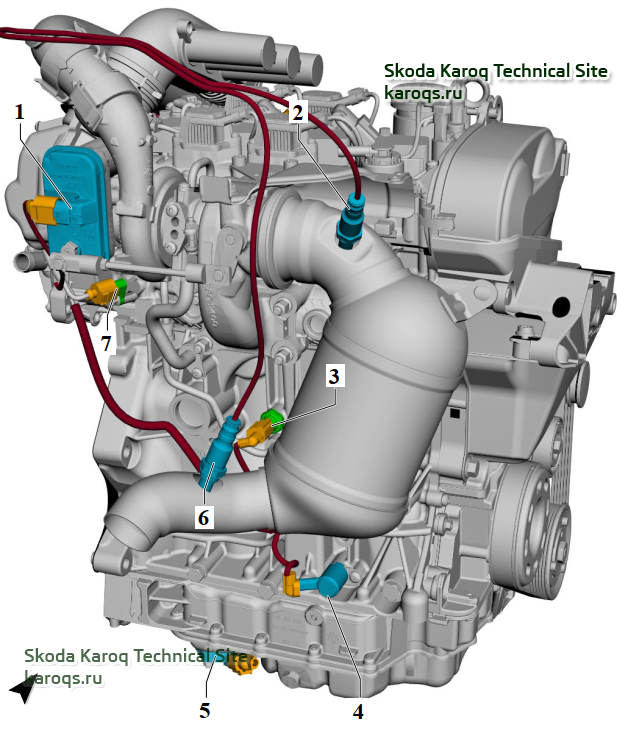

1,4 TSI petrol engine DJKA, from the rear

1 - Charge pressure positioner -V465-
2 - Lambda probe 1 before catalytic converter -GX10-
3 - Oil pressure switch -F1-
4 - Valve for oil pressure control -N428-
5 - Oil level and oil temperature sender -G266-
6 - Lambda probe 1 after catalytic converter -GX7-
7 - Coolant temperature sender -G62-
