Точки соединения с массой Шкода Карок

admin

Administrator
Автомобиль
VW Tiguan 2.0 TDI DBGC 2018
Earth points Skoda Karoq
Earth points in the front part of the vehicle


1123


797 - Earth point on cylinder block for ignition coil, cylinders 1 and 2
15 - Earth point on the cylinder head
798 - Earth point on cylinder block for ignition coil, cylinders 3 and 4
1 - Earth strap, battery - body
A - torque 9 Nm
B - torque 20 Nm
672 - Earth point 2 on front left of longitudinal member (9 Nm)
673 - Earth point 3 on front left of longitudinal member (9 Nm)
671 - Earth point 1 on front left of longitudinal member (20 Nm)
14 - Earth point on gearbox (20 Nm)
685 - Earth point 1 on front right of longitudinal member (9 Nm)
13 - Earth point in the right luggage compartment (9 Nm)


Earth points Skoda Karoq in the middle part of the vehicle

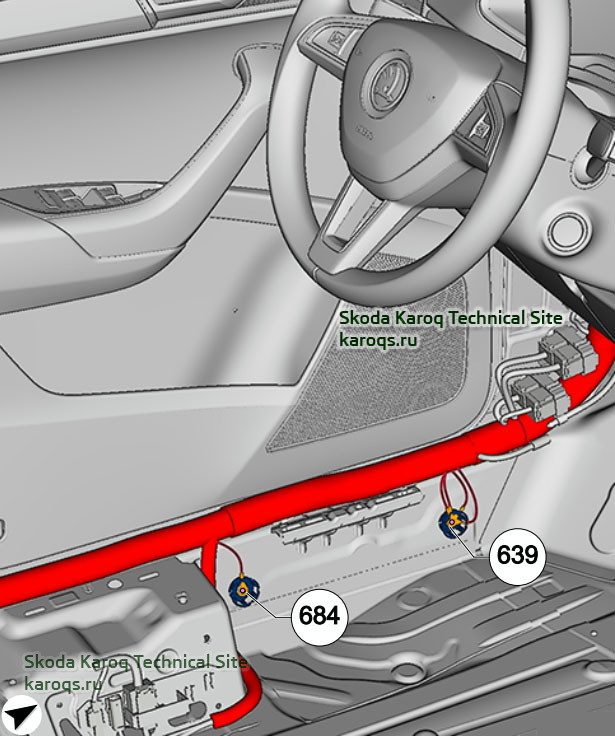

Interior front left


1124


684 - Earth point on front left side rail (9 Nm)
639 - Earth point on left A-pillar (9 Nm)

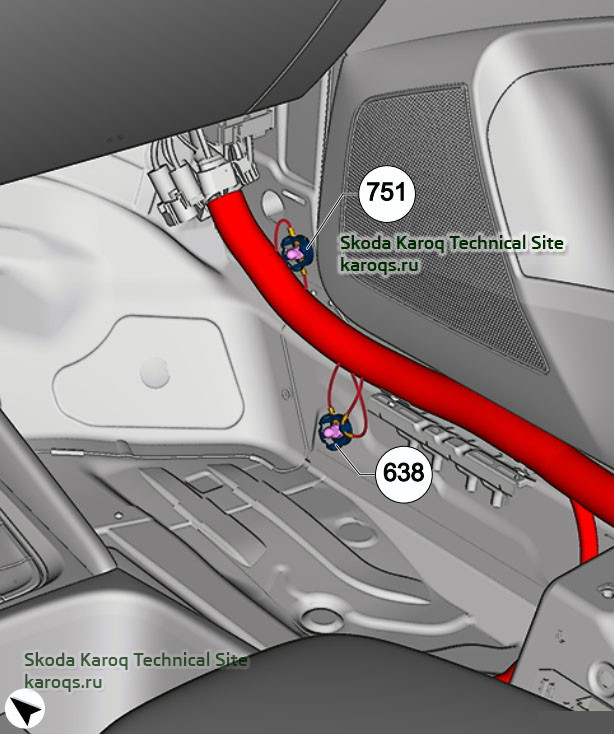

Interior front right

1125


751 - Earth point 2 on right A-pillar (9 Nm)
638 - Earth point on right A-pillar (9 Nm)

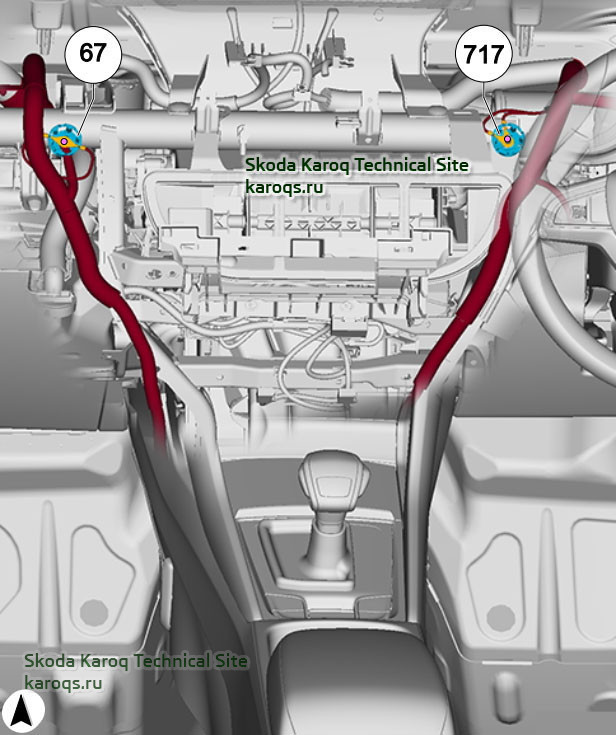

Interior front center

1126


67 - Earth point on front left cross-member (9 Nm)
only for vehicles with left-hand drive
717 - Earth point on front right cross-member (9 Nm)
only for vehicles with right-hand drive


Control units in the rear part Skoda Karoq
Luggage compartment on the left


1127


729 - Earth point on the rear left wheelhouse (9 Nm)
667 - Earth point on the rear left roof (9 Nm)
53 - Earth point in rear right lid (2 Nm)
666 - Earth point on the rear right roof (9 Nm)
51 - Earth point in luggage compartment, right (9 Nm)


Earth points on the roof

1128


689 - Earth point at centre front roof (9 Nm)
